Ultrasonic welding machine for PP caps and PA mesh: fast, clean, and precise
An ultrasonic welding solution that helps bond PP plastic caps and PA/Nylon mesh firmly and neatly without adhesive, suitable for industrial production that requires high speed and stable quality.
Welding PP caps and PA mesh requires a strong joint without damaging the material
For small plastic parts, plastic caps, filter membranes, or PA/Nylon mesh, traditional welding or bonding methods may leave adhesive marks, deform the welding edge, or make it difficult to control consistency. Ultrasonic welding solves these requirements by using high-frequency vibration energy to create a fast bond precisely at the contact area of the material.
No adhesive required
The weld is created directly on the plastic surface, reducing the need for additional consumables and keeping the product cleaner.
Fast welding speed
Short welding cycles, suitable for mass production or integration into fixtures and semi-automatic machines.
Stable weld quality
Suitable for parts that require good sealing, strong adhesion, or consistent weld quality after processing.
How an ultrasonic welding machine works
An ultrasonic welding machine converts electrical energy into high-frequency mechanical vibration. This vibration is transmitted through the welding horn to the plastic part, generating frictional heat at the contact surface. When the material reaches a localized molten state, pressure holds the two parts together to form a strong weld.
- No adhesive, screws, or additional bonding materials required.
- Focused welding area, reducing impact on the surrounding surface.
- Easy control of welding parameters such as time, pressure, amplitude, and stroke.

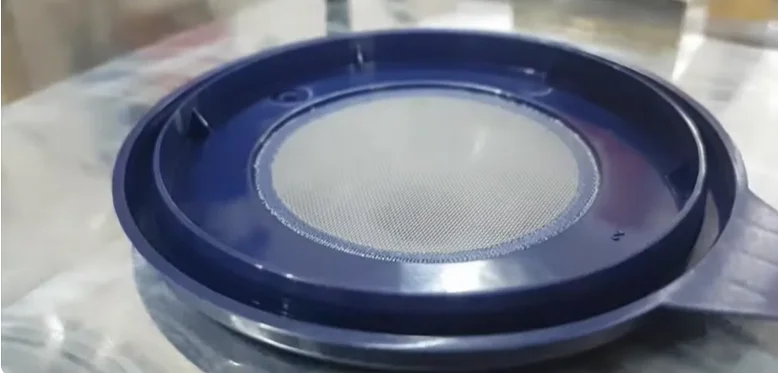

Application 1: Welding PP caps
PP is a common plastic material used in bottle caps, packaging caps, container lids, and many technical plastic parts. When a clean, uniform weld with reduced leakage risk is required, ultrasonic welding is a more suitable choice than adhesive bonding or manual heat welding.
Better sealing performance
Suitable for products that need to reduce open edges, cap loosening, or leakage during use.
Clean surface finish
No adhesive marks and minimal flash if the welding tool and parameters are set correctly.
Easy repeatability
Welding parameters can be saved and adjusted to ensure consistent quality between production batches.

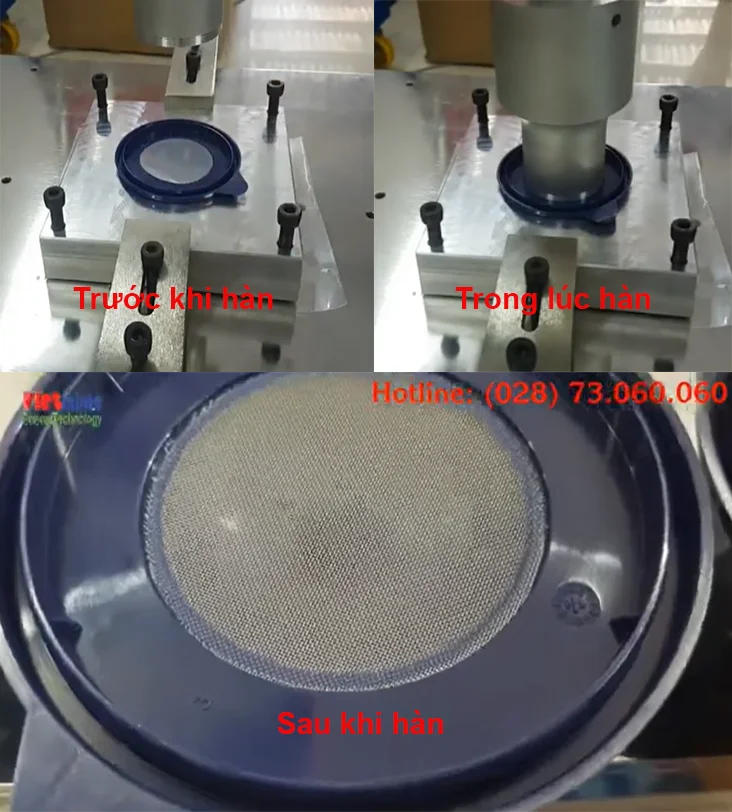

Application 2: Welding PA/Nylon mesh
PA mesh is commonly used in filtration, technical mesh, plastic parts combined with membranes/mesh, or products that need to maintain breathability. With ultrasonic welding, the welding area can be focused at the edge or bonding point, helping reduce burning, tearing, or deformation across the entire mesh surface.
Real video of ultrasonic welding machine for PP caps and PA mesh
The video should be placed after the application explanation so customers can immediately see the actual operating process: placing the product, the welding horn pressing down, the fast welding process, and checking the weld after completion.
- Helps customers clearly understand how the machine works.
- Builds trust through real operating footage.
- Suitable for keeping visitors on the page longer.
VietSonic consultation process for ultrasonic welding solutions
Receiving product samples
Checking the material, dimensions, welding area, sealing requirements, strength requirements, and desired production capacity.
Recommending machine configuration
Selecting the appropriate power, frequency, amplitude, stroke, and machine type based on the actual product.
Designing welding horns and fixtures
Manufacturing the welding horn according to the contact area shape and designing fixtures to hold the product steadily.
Test running and handover
Testing samples, fine-tuning parameters, providing operation guidance, and offering technical support after the machine is put into production.
What production needs is this solution suitable for?
- Welding PP plastic caps, packaging caps, container lids, or small plastic parts.
- Welding PA/Nylon mesh onto plastic frames or technical plastic parts.
- Processing products that require clean welds without adhesive.
- Mass production requiring high speed and stable repeatable quality.
- Custom machine, welding horn, or fixture design based on specific product samples.
| Applicable materials | PP, PA/Nylon, and selected compatible thermoplastics |
| Welding method | Welding by high-frequency ultrasonic vibration |
| Main advantages | Fast, clean, adhesive-free, and easy to control parameters |
| Implementation options | Standalone machine, dedicated fixture, or semi-automatic integration |
Need to test welding samples for PP caps or PA mesh?
VietSonic can advise on machine configuration, welding horn design, fixtures, and sample testing to evaluate application feasibility before implementation in production.
