Wind Turbine Gearbox Maintenance: The “Heart” of Wind Power and VietSonic’s In-Depth Process

The Gearbox is the key component, dubbed the “heart” of the wind turbine. It is responsible for converting the slow rotational speed from the blades into the high speed required to operate the generator.
VietSonic has received and processed heavy-duty gearboxes that have undergone long operational periods under extreme loads. This article clarifies why periodic maintenance is mandatory and the high-technical process that the VietSonic team has applied.

1. Why is Periodic Maintenance of Wind Gearboxes Mandatory?

Wind turbine gearbox maintenance is not just a recommendation; it is a mandatory technical requirement to ensure performance and longevity. The gearbox operates under extremely harsh conditions, leading to the following failure risks:



  • Subject to Variable Dynamic Loads: Unstable wind sources cause gears to constantly withstand impact, vibration, and strong torsion. This easily leads to micro-pitting or uneven wear on tooth surfaces.

    •

  • Harsh Environment: Gearboxes generate high temperatures during high friction processes, reducing lubricating oil lifespan and causing early damage to critical bearings.

    •

  • High Economic Risk: The cost of replacing a wind turbine gearbox is extremely high. Maintenance helps detect minor damages early, preventing total failure, massive economic loss, and prolonged downtime for investors.



2. VietSonic’s In-Depth Inspection and Treatment Process VietSonic

With a solid technical foundation from handling precision industrial equipment (such as ultrasonic machines), the VietSonic team has applied a scientific, meticulous workflow spanning 3 steps:

Step 1: Reception and Overall Assessment

We begin with a rigorous visual inspection:



  • Housing: Assess cracks, deformation, or mechanical damage on the gearbox body.

    •

  • Auxiliary Systems: Check pin positions, oil seal condition (to avoid leakage), and cooling system efficiency.

    •

  • Goal: Ensure a structurally sound exterior, free from cracks or oil leaks.

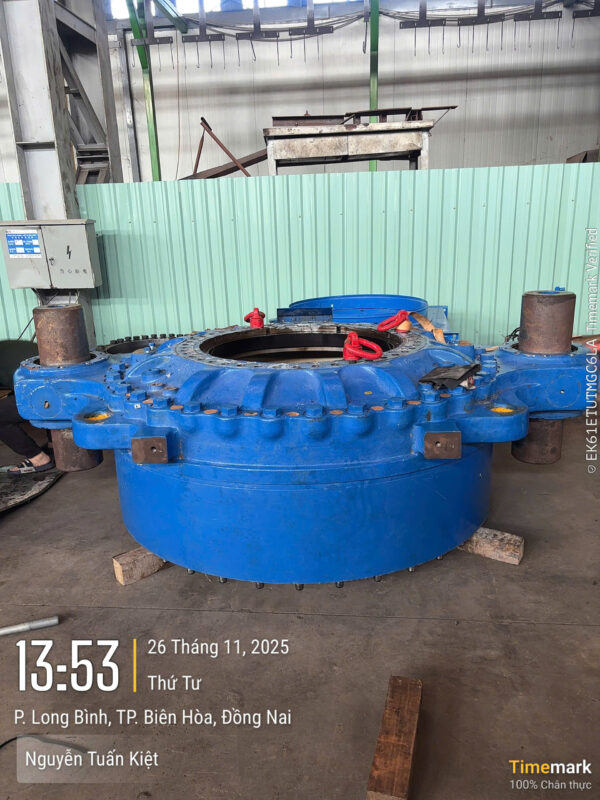

vietsonic-heavy-duty-wind-turbine-gearbox-maintenance-1
Photo caption: Overall view of the heavy-duty wind turbine gearbox being received and inspected by VietSonic at the Bien Hoa workshop (November 26, 2025).

Step 2: In-Depth Inspection of the Planetary Gear System

This is the most critical step, determining the lifespan and reliability of the gearbox. Engineers have opened the cover to access the internal “brain”, focusing on the planetary gear system meshing with the central sun gear:



  • Check Tooth Surfaces: Use specialized equipment to search for pitting, flaking, chipping, or signs of uneven wear.

    •

  • Measure Clearance and Mesh: Perform precise measurements to ensure gear meshing falls within the manufacturer’s allowable tolerance. Any deviation is a sign of premature wear.

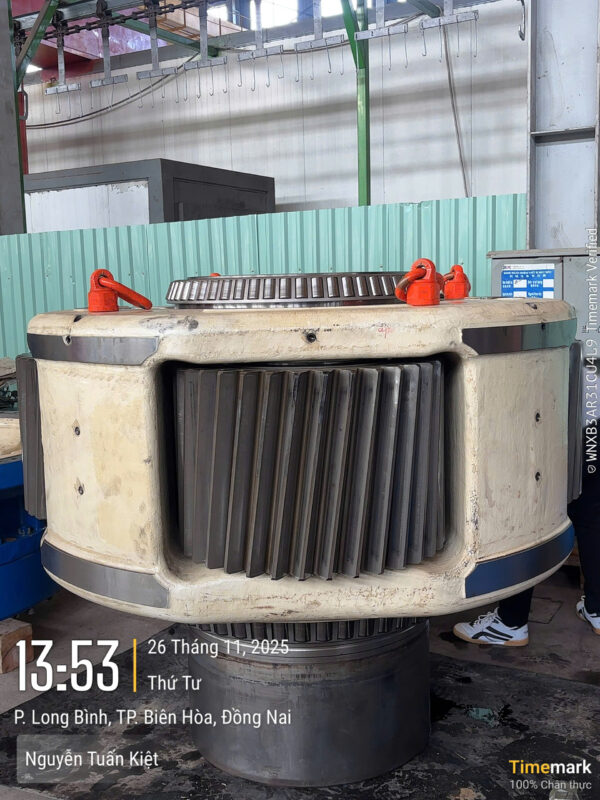

vietsonic-heavy-duty-wind-turbine-gearbox-maintenance-2
Overall view of the heavy-duty wind turbine gearbox being received and inspected by VietSonic at the Bien Hoa workshop (November 26, 2025).

Photo caption: Close-up of the planetary gear system inside the gearbox. VietSonic meticulously inspects contact surfaces to detect early signs of wear, such as small pitting marks.

Step 3: Maintenance and Technical Restoration

After determining the condition, VietSonic performs restoration tasks:



  • Industrial Cleaning: Thoroughly remove old oil sludge, metal shavings, and impurities.

    •

  • Lubrication: Apply specialized heat-resistant grease/oil, ensuring optimal lubrication under high loads.

    •

  • Parameter Calibration: Re-calibrate technical parameters, ensuring the gearbox operates smoothly, minimizing noise and temperature upon restart.

3. Customer Benefits When Choosing VietSonic

This project is a testament to VietSonic‘s comprehensive capability in the heavy industrial engineering sector:

Advantages Details
Solid Technical Foundation Starting from precision mechanical technology, the VietSonic team possesses the technical mindset to handle complex machinery with the highest precision.
Meticulous Process (High Standard QC) We apply rigorous inspection standards (similar to ultrasonic horn inspection) to mechanical maintenance, ensuring even the smallest errors are not overlooked.
Rapid Progress Understanding the operational pressure of our partners, VietSonic has mobilized manpower and equipment to complete the inspection immediately.

VietSonic is committed to always accompanying businesses with industrial technical solutions, from advanced ultrasonic technology to heavy-duty mechanical maintenance.
